Icom IC-A120

Model	IC-A120
Type	VHF Air Band Mobile Transceiver
Frequency Coverage (Tx/Rx)	118.000 – 136.992 MHz
Channel Spacing	25 kHz / 8.33 kHz
Emission Type	6K00A3E / 5K60A3E
Number of Memory Channels	200 channels with 12‑character names
RF Output Power	36W (P.E.P.), 10W max carrier; 9W typical
Power Supply Requirement	13.75 V / 27.5 V DC (12‑ & 24‑volt systems compatible)
Current Drain (13.75V)	Transmitting: 5.0A max; Receiving: 4.0A (AF max), 0.5A (stand‑by)
Frequency Stability	±5 ppm (-30°C to +60°C)
Antenna Connector	SO‑239 (50Ω)
Dimensions (W×H×D)	161 × 45 × 175 mm (6.34 × 1.77 × 6.89 in) – main unit
Weight	Approx. 1.5 kg (3.3 lb) – main unit
Intermediate Frequencies	38.85 MHz (1st) / 450 kHz (2nd)
Sensitivity (6dB S/N)	Less than 1 µV
Selectivity	8.33 kHz: 2.778/7.37 kHz (6dB/60dB); 25 kHz: 8/25 kHz (6dB/60dB)
Audio Output Power	Internal SP (8Ω): 1.5W typ; External SP (8Ω): >10W; Headphone (500Ω): >100mW
Spurious Emissions	Less than -60 dBc
Modulation Capability	70% to 100%
Microphone Impedance	600 Ω
Active Noise Cancelling	Built‑in ANC reduces background noise; also ANL (Auto Noise Limiter)
Bluetooth®	Optional UT‑133A unit for wireless headset connectivity
Ingress Protection	IP54 dust‑protection and water resistance
Operating Temperature	-30°C to +60°C (-22°F to +140°F)
Supplied Accessories	HM‑216 hand microphone, DC power cable, mounting bracket kit, microphone hanger kit, fuses
Optional Accessories	UT‑133A Bluetooth® unit, VS‑3 Bluetooth® headset, OPC‑871A headset adapter, HM‑217 speaker‑microphone, VE‑PG3 RoIP gateway
Warranty	2‑Year Manufacturer Warranty

Active Noise Cancelling (ANC)

Built‑in ANC dramatically reduces background noise from aircraft engines, generators, and vehicles, delivering clear transmission and reception even in the loudest airport environments.

Bluetooth® Wireless Connectivity

With the optional UT‑133A unit, you can use a third‑party wireless Bluetooth® headset. The side tone function lets you monitor your own transmitted voice, just like in an aircraft.

IP54 Dust & Water Protection

Sealed against dust and splashing water, the IC-A120 is ideal for open‑air vehicles like tugs, fire trucks, and follow‑me cars operating in all weather.

Dualwatch & ON‑Hook Scan

Monitor a priority channel while listening to another. Scanning starts automatically when you hang up the mic; pick it up and it stops at the priority channel — hands‑free safety.

Side Tone Function

With a headset connected, you can hear your own transmitted voice. Essential for confirming audio quality and adjusting speaking volume in noisy environments.

HM-217 Speaker Microphone

The optional HM‑217 includes a built‑in speaker, up/down buttons, and two programmable function keys (P1/P2) — full control without touching the main unit.

200 Memory Channels

Store up to 200 frequencies with 12‑character alphanumeric names. Quickly find the channel you need with the large dot‑matrix LCD.

PC Programming & External Control

Program channels and settings via PC. CI‑V commands allow integration with external systems, and the VE‑PG3 RoIP gateway connects the radio to a network.

12 & 24‑Volt System Ready

Runs natively on both 12V and 24V vehicle electrical systems. No converter needed — just wire it up and you're ready to communicate.

Power‑On Password Protection

Secure the radio against unauthorised use with a password lock. Critical for airport operations where frequencies must not be tampered with.

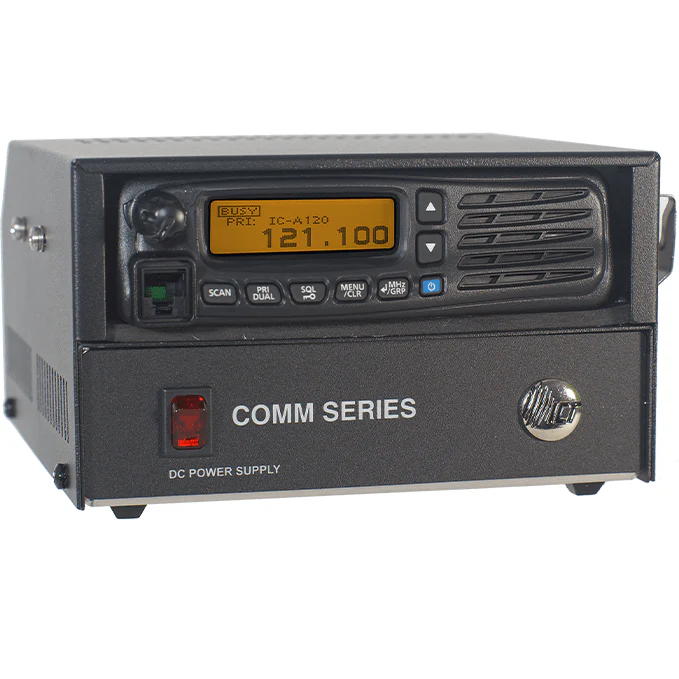

Icom IC-A120 is a top‑performance VHF Air Band mobile transceiver designed for ground vehicles operating in high‑noise airport environments. Whether you're coordinating ramp operations, driving an emergency vehicle, or maintaining airfield lighting, the IC‑A120 ensures you hear and are heard with unmatched clarity. It combines Icom’s legendary radio engineering with modern features like built‑in Active Noise Cancelling (ANC), Bluetooth® connectivity, and an IP54‑rated rugged construction.

Engineered for Aviation Ground Use: The full dot‑matrix LCD displays alphanumeric channel names and icons with excellent readability in bright sunlight. All essential functions — channel selection, volume, squelch — are accessible from the front panel, and can be customised or restricted via programming. The radio operates on both 12‑ and 24‑volt vehicle electrical systems without an external converter, simplifying installation in any vehicle.

Unrivalled Noise Reduction: The built‑in Active Noise Cancelling (ANC) system actively counteracts background noise — jet engines, equipment, wind — in both transmitted and received audio. Complementing ANC, the Automatic Noise Limiter (ANL) suppresses pulse‑type noise like ignition interference. The side tone function lets you monitor your own voice through a headset, ensuring clear, properly modulated transmission.

Smart Scan and Dualwatch: The dualwatch function alternates between a priority and an operating channel, while the ON‑hook scan automatically starts scanning as soon as the microphone is hung up. When you lift the mic, scanning stops at the priority channel — perfect for safety vehicles that need to monitor multiple frequencies without manual intervention.

Flexible Connectivity: Add the optional UT‑133A Bluetooth® unit and pair a wireless headset for cable‑free operation. The OPC‑871A headset adapter connects third‑party aviation headsets, and the VE‑PG3 RoIP gateway links the IC‑A120 to other radio systems over IP. The HM‑217 speaker‑microphone provides full control from the palm of your hand.

Why Choose Icom IC-A120? Because in aviation ground operations, every word matters. The IC‑A120 delivers the clarity, reliability, and features professionals demand. Backed by a 2‑year manufacturer warranty and Electro Creators’ expert support across Maharashtra, Madhya Pradesh, and Chhattisgarh. We provide installation, programming, and integration with existing radio networks.

For a personalised quote, custom frequency programming, or a demonstration, contact our team today.
